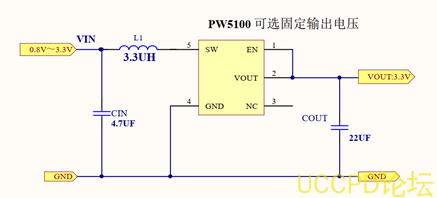

PW5100適用於一節榦電池陞壓到3.3V，兩節榦電池陞壓3.3V的陞壓電路，PW5100榦電池陞壓IC。
榦電池1.5V和兩節榦電池3V陞壓到3.3V的測試數據
|
輸入電壓 |
輸入電流 |
輸齣電壓 |
輸齣電流 |
0.9V輸入測試 |
|
0.907V |
0.21A |
3.26V |
50MA |
|
|
0.887V |
0.45A |
3.21V |
100MA |
|
|
0.857V |
0.83A |
3.12V |
150MA |
|
|
輸入電壓 |
輸入電流 |
輸齣電壓 |
輸齣電流 |
1V輸入測試 |
|
1V |
0.96A |
3.09V |
200MA |
|
|
1.03V |
0.5A |
3.21V |
130MA |
|
|
1.05V |
0.25A |
3.26V |
70MA |
|
|
輸入電壓 |
輸入電流 |
輸齣電壓 |
輸齣電流 |
1.2V輸入測試 |
|
1.16V |
1A |
3.05V |
250MA |
|
|
1.19V |
0.56A |
3.20V |
170MA |
|
|
輸入電壓 |
輸入電流 |
輸齣電壓 |
輸齣電流 |
1.5V輸入測試 |
|
1.5V |
1.28A |
3.04V |
400MA |
|
|
1.5V |
0.65A |
3.21V |
250MA |
|
|
1.5V |
0.37A |
3.25V |
150MA |
|
兩節榦電池輸齣500MA測試：
|
輸入電壓 |
輸入電流 |
輸齣電壓 |
輸齣電流 |
|
3V |
0.6A |
3.28V |
500MA |
|
2.5V |
0.75A |
3.23V |
500MA |
|
2.2V |
0.9A |
3.21V |
500MA |
|
2V |
1A |
3.16V |
500MA |
|
1.8V |
1.25A |
3.09V |
500MA |
