PWESD-5VSDA ESD 防护器件宣传页

产品概述

The PWESD-5VSDA is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time , make these parts ideal for ESD protection on designs where board space is at a premium

主要特性

· Reverse stand-off voltage: 5V Max

· Low leakage current: nA Level

· Low Clamping Voltage: VC < 10 V @ IPP = 30A

· Response time is typically < 1 ns

· ESD Protection: 30kV(air)/ 30kV(contact) ( IEC61000-4-2)

· RoHS compliant

典型应用

· Cell Phone Handsets and Accessories

· Microprocessor based equipment

· Personal Digital Assistants (PDA’s)

· Notebooks, Desktops, and Servers

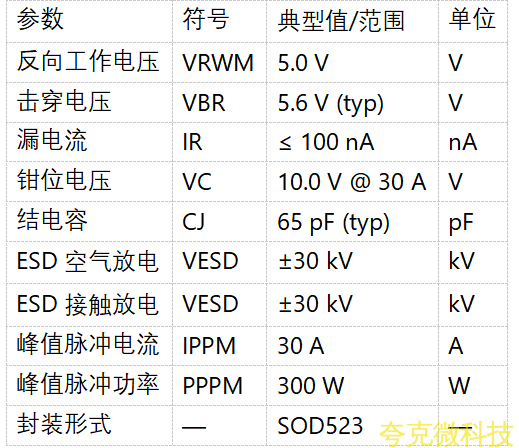

关键参数
